Leading the way in solar cleaning solutions since 2012
Designed & Manufactured in Korea
.jpg){kind=small}
For all inquiries,
Mobile : +82 10 9695 5552
Tel : +82 31 889 5551
Fax : +82 31 889 5552
official@integrag.com
Crawler-type Solmaks F series ( Rubber tracked / Rubber wheeled ) / Simple,Robust,maintainability
-
Solmaks FSB : Efficiency type / Lighter with a more Compact Design than Solmaks FS
-
Solmaks FS : Power type / Rubber track
-
Solmaks FS + : Rubber track / Hight capacity battery / Longer brush head
-

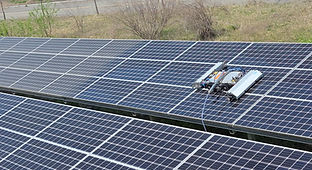

Solmaks F (6×6) : Rubber wheel Solar Panel Cleaning System Designed for Waterless Cleaning and Low-Angle Solar Panels / Durable wheels enabling semi-permanent operation
-
Rather than excessive lightweight construction, the equipment has been designed with an optimized weight balance that prioritizes stable traction, consistent brush pressure, vibration suppression during brush rotation, and operational stability on sloped surfaces under actual industrial site conditions.
Designed with durability in mind for easy parts replacement, low maintenance costs, and long-term operation.
Recommended Operating Personnel
-
Operation : Single-operator capable
-
On-site operation : Recommended for 1-2 persons
-
Loading/Unloading & Work Efficiency : 2 persons operation recommended
Overall dimensions ( approx. L x W x H ) with brush head x 2
-
Solmaks FSB (Track) : 1,430mm x 1,170mm x 180mm
Main body : 750 x 560mm x 180mm
-
Solmaks FS (Track) : 1,450mm x 1,200mm x 210mm
-
Solmaks F (Wheel) : 1,580mm x 1,400mm x 250mm
-
Solmaks FS + (Track) : 1,650mm x 1,460mm) x 250mm
Weight ( approx. ) / battery excluded
-
Solmaks F : body - 32Kg + Brush head- 13Kg X 2
-
Solmaks FS : body - 37Kg( + Brush head - 10Kg X 2
-
Solmaks FSB : body - 32Kg( + Brush head - 9.5Kg X 2
-
Solmaks FS + : body - 45Kg + Brush head - 13Kg X 2 / high capacity bat.
Materials
-
Structure, cover, parts : Aluminum + Stainless steel
-
Precision prcess parts
Wheel
-
Solmaks F : 6 x 6 rubber wheel ( semi-permanent wheel )
-
Solmaks FS / Solmaks FSB / Solmaks FS + ( rubber track )
Brush
-
Brush head X 2 (standard) / brush head X 1 (starter)
-
Nylon + Stainless steel
-
Easy replacement
Control
-
Selectable gun-type RF transmitter or stick-type transmitter
-
Wireless remote control (forward / reverse / pivot turn / left / right)
-
High-power motor control driver system applied
Safety
-
Dual safety stop system (transmitter + driver)
-
Remote emergency stop / quick stop
-
Automatic reactivation upon signal recovery
-
No manual reset required
Travel speed
-
0 ~ 0.2/sec. / speed controlled
Protection
-
IP45 ( < NEMA 4X level )
-
Rust resistant / Dust resistant
-
Cooling fan(s)
Battery
-
Lithium-ion wrapped-type battery (Samsung SDI cell-based) with BMS protection system
-
Detachable / Rechargeable
Operating time
-
< 2 ~ 2.5 hours ( Solmaks FSB )
-
< 1.5 ~ 2 hours ( Solmaks FS )
-
< 2 ~ 2.5 hours ( Solmaks FS + )
Operating slope
-
Dry: < 22° (recommended) / Wet: < 16° (recommended, no surfactant use)
Actual operating capability may exceed the recommended range depending on panel surface condition, panel specifications, and site environment. Final operating limits should be determined based on on-site safety assessment.
Adjustments
-
Brush head : Vertical & Horizontal positon adjustments
Water supply
-
Detachable 360° rotating water supply unit
-
One-touch hose coupling with flow control valve
Cover
-
Anodized surface treatment for improved corrosion and wear resistance
Site
-
Ground mounted / Roof mounted solar system / Solar carports
-
Commercial and utility scale
